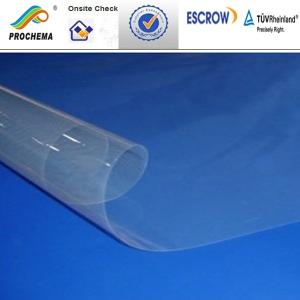

self-humidifying fuel Cells ion exchange membrane, perfluorinated ion exchange film N312

Name: selfhumidifying fuel Cells ion exchange membrane perfluorinated ion exchange film N312
Brand: Prochema
Price: 1 USD

Place of Origin : China

Brand Name : Prochema

Certification : ISO

Model Number : N31

MOQ : 1 sqm

Price : negotiate

Packaging Details : plastic bag and carton

Delivery Time : one weeks

Payment Terms : T/T

Supply Ability : 2000sqm /month

Contact Now

N-31X (SiO2)

Perfluoinated ion-exchange film

N312

self-humidifying fuel Cells film

High temperature fuel cell film

For Fuel cells,

and other special

electrolysis and

high temperature

environment

Introduction :

N-31X (SiO2) is hybrided by SiO2 and Perfluorinated ion exchange Resin . Thus our film has many outstanding features. It not only has the high tensile strength ,high selection,isotropy,high conductance;but also has the effect of self-humidifying and with low Linear Expansion It can be

used in high temperature fuel cells and self-humidifying fuel Cells.

Package:

N-31X (SiO2) is packaged by Plastic bucket. Special Package please

indicate.

Thickness and Weight :

Type	Thickness (um)	Weight (g/m2)
N311(SiO2)	280	616
N-312(SiO2)	50	110
N-314(SiO2)	100	220

X can be 1-10mil , Special thickness and size ,please contact us .1mil=25.4um

Size:

Length x width : 500x500 600x600 800x800mm

N series Performance :

Performance	Numerical	Method
Tensile strength	40MPa (23oC,50% RH,Isotropy)	ASTMD885
Tensile Modulus	630MPa(23oC,50% RH,Isotropy)	ASTMD882
Linear Expansion	2±1%( 23oC,from50% RH,to water soaked)	ASTM756
Water Uptake	50±5% (100oC,1h)	ASTMD570
Conductivity	0.1S/cm	25oC,zawodzinski
Equivalent weight	1000g/eq	Test method designed by Factory
Permeability	OCV>1.3V over 300h
